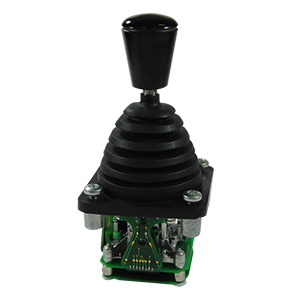

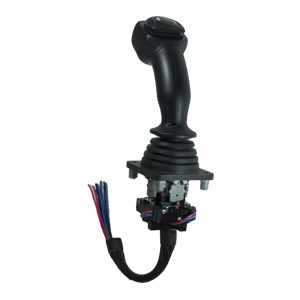

CDJ420 Joystick with 4-20mA Output

The Control Devices CDJ420 series joystick is available in single and dual axis configurations.

This joystick can be supplied with a battery rail voltage anywhere from 8-30 V dc. The device conditions the voltage and supplies the appropriate voltage levels to both ends of the joystick pot taps, as well as the centre tap. The output from the joystick is 4-20mA. The joystick can be configured to give either 4mA or 12mA as the centre current. Directional switches are also provided if a discrete signal for displacement is required.

  • Rugged mechanical design
  • Industry standard 4-20mA output
  • Optional outputs available (0-24mA)
  • Multiple Ergonomic grips
  • Custom Switch layouts
  • Optional dual output redundancy
  • MOSFET isolated directional switches
  • Internal power regulation

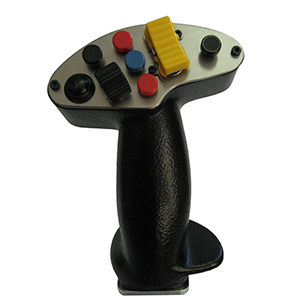

Check out Handle options

Get Data Sheet

Description

The Control Devices CDJ420 series industrial joystick with 4-20 mA output is available in single and dual axis configurations.

The CDJ420 Industrial joystick can be supplied with a battery rail voltage anywhere from 8-30 V dc. The device conditions the voltage and supplies the appropriate voltage levels to both ends of the joystick pot taps, as well as the centre tap. The joystick produces 4-20 mA output. The joystick can be configured to give either 4mA or 12mA as the centre current. Directional switches are also provided if a discrete signal for displacement is required.

  • Rugged mechanical design
  • Industry standard 4-20mA output
  • Optional outputs available (0-24mA)
  • Multiple Ergonomic grips
  • Custom Switch layouts
  • Optional dual output redundancy
  • MOSFET isolated directional switches
  • Internal power regulation

View Handle options here
